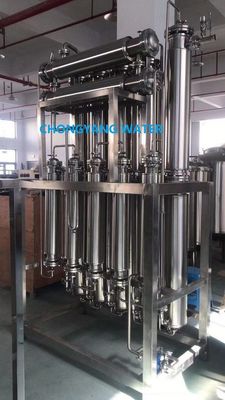

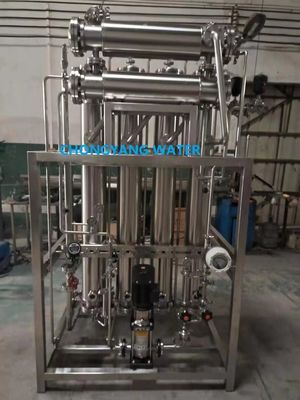

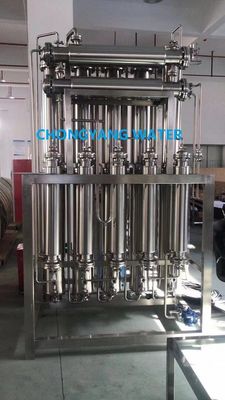

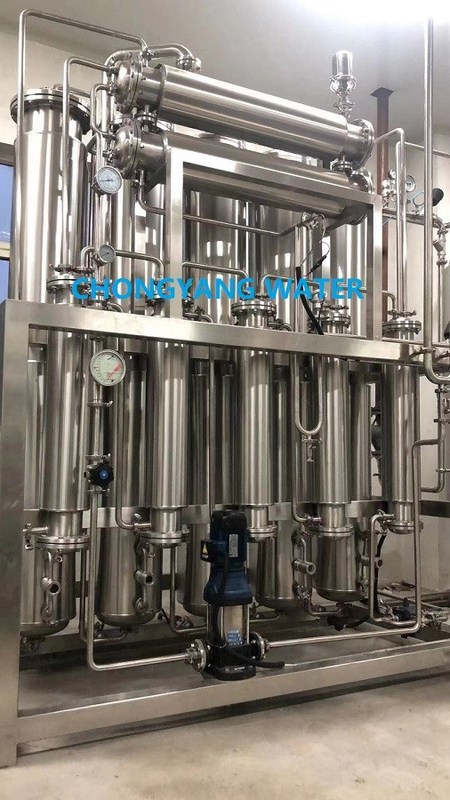

Pharmaceutical Industry Multi Column Distillation Plant Multi Effect Distiller
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-WFI-300Liter/Hour |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Months |
|
Detail Information |
|||
| Material: | SS316L | Stages: | 4-6 Effects |
|---|---|---|---|
| Valve: | Diaphragm Valve | Pump: | Grundfos, CNP |
| Conductivity: | 1.3μS/cm | Requested Feed Water: | Purified Water System |
| Product Name: | Multi Column Distillation Plant | Standard: | FDA,USP,cGMP,GMP |
| Pipeline Material: | BPE,SS | Capacity: | 100L/H -10,000L/H |
| Highlight: | Pharmaceutical Industry Multi Column Distillation Plant,Injection Multi Column Distillation Plant,WFI multi effect distiller |
||
Product Description
Product Name:100-3000L/H Multi-Effect Distiller For Pharmaceutical Industry Water For Injection For High Requirement
CHONGYANG WATER FEATURE:
A researcher only need more water quality little than purified water quality ,maybe simply distiller is ok . so CHONGYANG Water can provide smart water for injection machiney with low cost .
The 3 effects distiller is enough .
Internal circulation system control growth of microorgansim .
There are the detailed stipulation in GMP Standard for preparation of water ,storage ,distribution . They should be no growth of microorganism and contamination .The material of storage and conveying pipeline should be non-toxic ,anti-corrosion , the design of pipeline and installation should be no dead leg , blind tube .The storage and pipeline should been cleaned ,sterilized regularly . Air vent should been equipped with hydrophobic sterilizing filter .
CHONGYANG Water Spec. & Type
| Model | Effects | Capacity | Feed Water | Plant Steam | Cooling Water |
Height (mm) |
Length (mm) |
Width (mm) |
| CY-WS100 | 4 | 100 | 115 | 45 | 80 | 2650 | 1300 | 710 |
| CY-WS200 | 4 | 200 | 230 | 76 | 120 | 2650 | 1360 | 710 |
| CY-WS200 | 5 | 200 | 230 | 62 | 50 | 2650 | 1620 | 710 |
| CY-WS300 | 4 | 300 | 345 | 109 | 190 | 2650 | 1410 | 730 |
| CY-WS300 | 5 | 300 | 345 | 89 | 90 | 2650 | 1730 | 730 |
| CY-WS500 | 4 | 500 | 575 | 185 | 310 | 3170 | 1680 | 900 |
| CY-WS500 | 5 | 500 | 575 | 148 | 130 | 3170 | 2000 | 900 |
| CY-WS750 | 4 | 750 | 865 | 256 | 300 | 3260 | 1680 | 900 |
| CY-WS750 | 5 | 750 | 865 | 205 | 178 | 3260 | 2000 | 900 |
| CY-WS1000 | 5 | 1000 | 1150 | 295 | 256 | 3685 | 2180 | 980 |
| CY-WS1000 | 6 | 1000 | 1150 | 245 | 65 | 3685 | 2830 | 980 |
| CY-WS1500 | 5 | 1500 | 1725 | 460 | 390 | 3685 | 2680 | 1100 |
| CY-WS1500 | 6 | 1500 | 1725 | 380 | 95 | 3685 | 3150 | 1100 |
| CY-WS2000 | 5 | 2000 | 2300 | 540 | 345 | 3940 | 3150 | 1100 |
| CY-WS2000 | 6 | 2000 | 2300 | 490 | 130 | 3950 | 3580 | 1100 |
| CY-WS3000 | 6 | 3000 | 3450 | 730 | 190 | 4050 | 4000 | 1200 |
| CY-WS4000 | 6 | 4000 | 3450 | 910 | 310 | 4800 | 4000 | 1200 |
| CY-WS5000 | 6 | 5000 | 5750 | 1140 | 440 | 4200 | 4550 |
1350 |
FAQ:
1.Question: Which process do you adopt ?
Answer:Usually we will be according to what your raw water quality and your requested water requirement .
2. Question:Can you customize For me?
Answer :Yes. We can manufacture according your requirement , we can even design appearance of equipment .
3.Question: What standards is the Pharmaceutical Purified Water System ?
Answer: Usually there are five standards in this pharmaceutical industry , FDA,cGMP ,GMP ,USP, Japanese .
4.Question:How long is the Delivery time ?
Answer: Usually the delivery time is 35 -40 Days .
