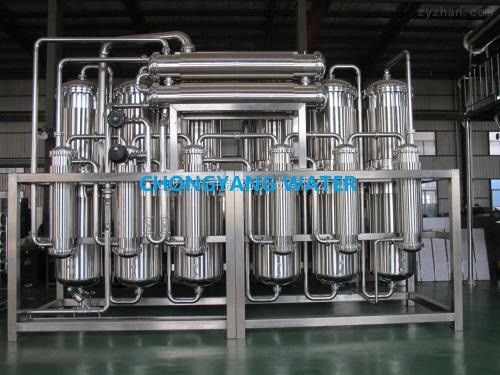

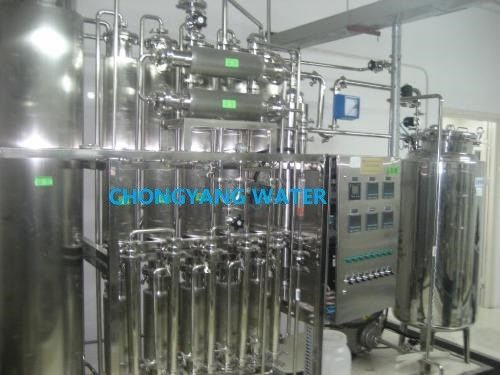

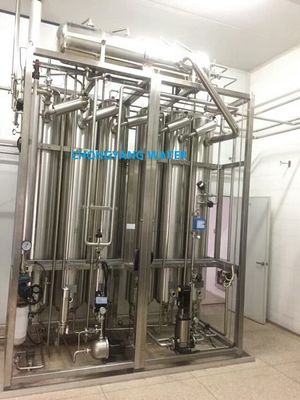

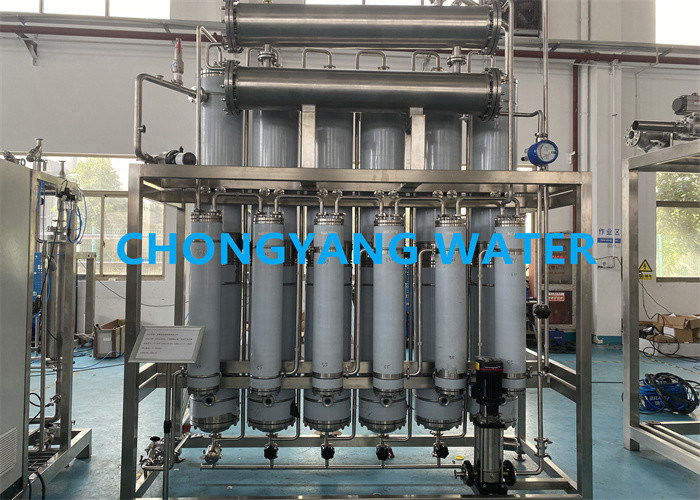

Multi Column Distillation Plant Commercial Distilled Water Machine Partial Vaporization
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-WFI-300Liter/Hour |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Months |
|
Detail Information |
|||
| Material: | SS316L | Stages: | 4-6 Effects |
|---|---|---|---|
| Valve: | Diaphragm Valve | Pump: | Grundfos, CNP |
| Conductivity: | 1.3μS/cm | Requested Feed Water: | Purified Water System |
| Product Name: | Multi Column Distillation Plant | Standard: | FDA,USP,cGMP,GMP |
| Pipeline Material: | BPE,SS | Capacity: | 100L/H -10,000L/H |
| Highlight: | Commercial Multi Column Distillation Plant,Partial Evaporation Multi Column Distillation Plant,Commercial Distilled Water Machine |
||
Product Description
Product Name:Multicolumn Distillation Plant Multiple Effect Distillers Partial Vaporization
Brief Instruction:
There are four type for choice ,such as tree effect, four tree effect , five effect ,six effect , customer can choose which kind of type according to need .
The feature of our equipment :
1.More cost ,safer,more effect .
2.Conclusion under specified operation parameters,the quality of water by multi effect still is steady ,reliable .
3.Objective to find out the factors influencing the quality of water by multi effect still ,if according to magnitude of influenced importance is feed water quality ,steam quality ,flow of feed water inlet,flow of the cooling water
CHONGYANG Water Spec. & Type
| Model | Effects | Capacity | Feed Water | Plant Steam | Cooling Water |
Height (mm) |
Length (mm) |
Width (mm) |
| CY-WS100 | 4 | 100 | 115 | 45 | 80 | 2650 | 1300 | 710 |
| CY-WS200 | 4 | 200 | 230 | 76 | 120 | 2650 | 1360 | 710 |
| CY-WS200 | 5 | 200 | 230 | 62 | 50 | 2650 | 1620 | 710 |
| CY-WS300 | 4 | 300 | 345 | 109 | 190 | 2650 | 1410 | 730 |
| CY-WS300 | 5 | 300 | 345 | 89 | 90 | 2650 | 1730 | 730 |
| CY-WS500 | 4 | 500 | 575 | 185 | 310 | 3170 | 1680 | 900 |
| CY-WS500 | 5 | 500 | 575 | 148 | 130 | 3170 | 2000 | 900 |
| CY-WS750 | 4 | 750 | 865 | 256 | 300 | 3260 | 1680 | 900 |
| CY-WS750 | 5 | 750 | 865 | 205 | 178 | 3260 | 2000 | 900 |
| CY-WS1000 | 5 | 1000 | 1150 | 295 | 256 | 3685 | 2180 | 980 |
| CY-WS1000 | 6 | 1000 | 1150 | 245 | 65 | 3685 | 2830 | 980 |
| CY-WS1500 | 5 | 1500 | 1725 | 460 | 390 | 3685 | 2680 | 1100 |
| CY-WS1500 | 6 | 1500 | 1725 | 380 | 95 | 3685 | 3150 | 1100 |
| CY-WS2000 | 5 | 2000 | 2300 | 540 | 345 | 3940 | 3150 | 1100 |
| CY-WS2000 | 6 | 2000 | 2300 | 490 | 130 | 3950 | 3580 | 1100 |
| CY-WS3000 | 6 | 3000 | 3450 | 730 | 190 | 4050 | 4000 | 1200 |
| CY-WS4000 | 6 | 4000 | 3450 | 910 | 310 | 4800 | 4000 | 1200 |
| CY-WS5000 | 6 | 5000 | 5750 | 1140 | 440 | 4200 | 4550 |
1350 |
FAQ:
1.Question: Which process do you adopt ?
Answer:Usually we will be according to what your raw water quality and your requested water requirement .
2. Question:Can you customize For me?
Answer :Yes. We can manufacture according your requirement , we can even design appearance of equipment .
3.Question: What standards is the Pharmaceutical Purified Water System ?
Answer: Usually there are five standards in this pharmaceutical industry , FDA,cGMP ,GMP ,USP, Japanese .
4.Question:How long is the Delivery time ?
Answer: Usually the delivery time is 35 -40 Days .
