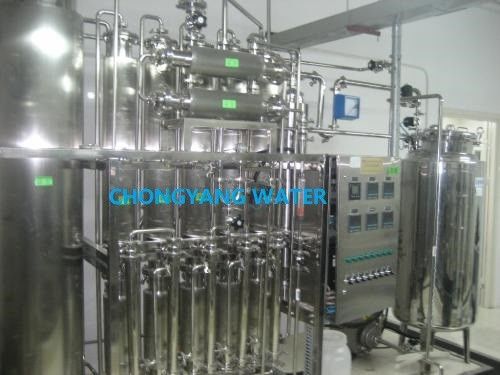

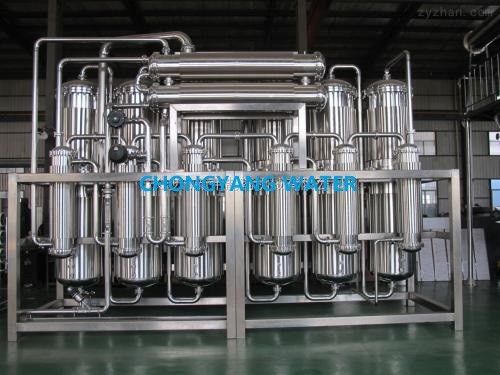

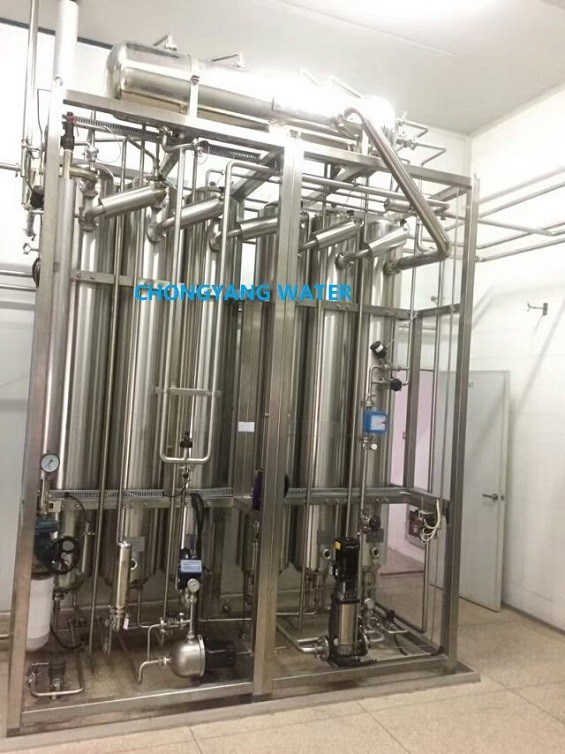

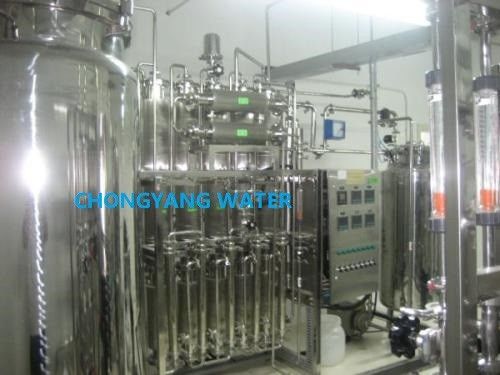

Water Distiller Unit 6 Effects Distilled Water For Plants For Injection CE
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-WFI-300Liter/Hour |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Months |
|
Detail Information |
|||
| Material: | SS316L | Stages: | 4-6 Effects |
|---|---|---|---|
| Valve: | Diaphragm Valve | Pump: | Grundfos, CNP |
| Conductivity: | 1.3μS/cm | Requested Feed Water: | Purified Water System |
| Product Name: | Multi Column Distillation Plant | Standard: | FDA,USP,cGMP,GMP |
| Pipeline Material: | BPE,SS | Capacity: | 100L/H -10,000L/H |
| Highlight: | Distilled Water Distiller Unit,Water Distiller Unit 6 Effects,distilled water for plants CE |
||
Product Description
Product Name:Pharmaceutical Multi Effect Water Distillation Equipment WFI System
What is Multi Column Distillation Plant ?
A Multi Column Distillation Plant (MCD plant) is a water purification system used in the pharmaceutical industry to produce high-quality water for use in injectable drugs and other sterile products. MCD plants use a combination of distillation and condensation to purify water and remove impurities.
The MCD plant typically includes a series of columns, each of which contains a heating element and a cooling coil. The water to be purified is fed into the first column and heated, causing it to vaporize. The vapor then rises through the column and is condensed on the cooling coil, producing pure distilled water.
The distilled water is then passed through a series of additional columns, each of which serves to further purify the water by removing any remaining impurities. The final product is a highly purified water, known as Water for Injection (WFI), that meets the stringent standards required for use in pharmaceutical manufacturing.
MCD plants are typically designed to operate continuously, allowing for a steady supply of purified water to be produced as needed. The plant may also include various monitoring and control systems to ensure that the quality of the water remains consistent over time.
When choosing an MCD plant, it is important to consider factors such as the quality of the incoming water, the level of purification required, the flow rate required, and the maintenance requirements of the system. Choosing a reputable manufacturer and ensuring proper installation and maintenance of the system can help ensure that it provides high-quality WFI for use in pharmaceutical manufacturing.
CHONGYANG Water Spec. & Type
| Model | Effects | Capacity | Feed Water | Plant Steam | Cooling Water |
Height (mm) |
Length (mm) |
Width (mm) |
| CY-WS100 | 4 | 100 | 115 | 45 | 80 | 2650 | 1300 | 710 |
| CY-WS200 | 4 | 200 | 230 | 76 | 120 | 2650 | 1360 | 710 |
| CY-WS200 | 5 | 200 | 230 | 62 | 50 | 2650 | 1620 | 710 |
| CY-WS300 | 4 | 300 | 345 | 109 | 190 | 2650 | 1410 | 730 |
| CY-WS300 | 5 | 300 | 345 | 89 | 90 | 2650 | 1730 | 730 |
| CY-WS500 | 4 | 500 | 575 | 185 | 310 | 3170 | 1680 | 900 |
| CY-WS500 | 5 | 500 | 575 | 148 | 130 | 3170 | 2000 | 900 |
| CY-WS750 | 4 | 750 | 865 | 256 | 300 | 3260 | 1680 | 900 |
| CY-WS750 | 5 | 750 | 865 | 205 | 178 | 3260 | 2000 | 900 |
| CY-WS1000 | 5 | 1000 | 1150 | 295 | 256 | 3685 | 2180 | 980 |
| CY-WS1000 | 6 | 1000 | 1150 | 245 | 65 | 3685 | 2830 | 980 |
| CY-WS1500 | 5 | 1500 | 1725 | 460 | 390 | 3685 | 2680 | 1100 |
| CY-WS1500 | 6 | 1500 | 1725 | 380 | 95 | 3685 | 3150 | 1100 |
| CY-WS2000 | 5 | 2000 | 2300 | 540 | 345 | 3940 | 3150 | 1100 |
| CY-WS2000 | 6 | 2000 | 2300 | 490 | 130 | 3950 | 3580 | 1100 |
| CY-WS3000 | 6 | 3000 | 3450 | 730 | 190 | 4050 | 4000 | 1200 |
| CY-WS4000 | 6 | 4000 | 3450 | 910 | 310 | 4800 | 4000 | 1200 |
| CY-WS5000 | 6 | 5000 | 5750 | 1140 | 440 | 4200 | 4550 |
1350 |
FAQ:
1.Question: Which process do you adopt ?
Answer:Usually we will be according to what your raw water quality and your requested water requirement .
2. Question:Can you customize For me?
Answer :Yes. We can manufacture according your requirement , we can even design appearance of equipment .
3.Question: What standards is the Pharmaceutical Purified Water System ?
Answer: Usually there are five standards in this pharmaceutical industry , FDA,cGMP ,GMP ,USP, Japanese .
4.Question:How long is the Delivery time ?
Answer: Usually the delivery time is 35 -40 Days .
