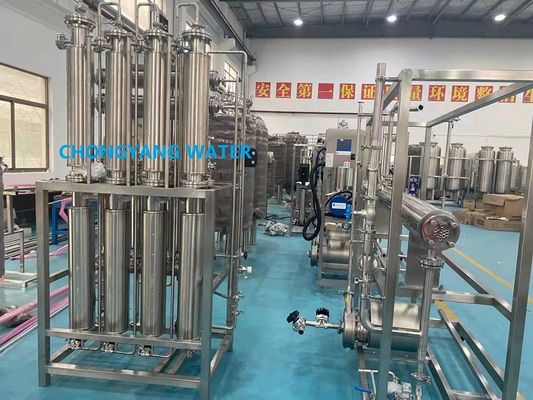

Steam Multi Column Distillation Plant Industrial Distilled Water Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-WFI-300Liter/Hour |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Months |
|
Detail Information |
|||
| Product Name: | Steam Distillation Machine | Stages: | 4-6 Effects |
|---|---|---|---|
| Valve: | Diaphragm Valve | Pump: | Grundfos, CNP |
| Conductivity: | 1.3μS/cm | Requested Feed Water: | Purified Water System |
| Standard: | FDA,USP,cGMP,GMP | Pipeline Material: | BPE,SS |
| Capacity: | 100L/H -10,000L/H | Material: | SS304, SS316 |
| Highlight: | Industrial Multi Column Distillation Plant,Steam Multi Column Distillation Plant,Multi Column Industrial Distilled Water Machine |
||
Product Description
Product Name:Steam Distillation Machine Water Distiller Machine For Distilled Water
What are the most important factors to consider when choosing an MCD plant?
When choosing a Multi Column Distillation (MCD) plant, there are several important factors to consider:
Water quality: Consider the quality of the incoming water and the specific contaminants that need to be removed. This will help determine the type of MCD plant and the number of columns required to achieve the desired level of purification.
System performance: Look for an MCD plant that can produce the required amount of purified water per day and has a fast flow rate. Consider the efficiency of the system and the amount of energy required to operate it.
Installation requirements: Consider the space available for installation and the plumbing requirements of the system. Some MCD plants may require additional components or modifications to existing plumbing to function properly.
Maintenance requirements: Look for an MCD plant with easy-to-replace components. Consider the overall maintenance requirements of the system and the frequency of component replacement.
Cost: Consider the initial cost of the system as well as the ongoing maintenance and operating costs. Look for an MCD plant that provides good value for its price.
CHONGYANG Water Spec. & Type
| Model | Effects | Capacity | Feed Water | Plant Steam | Cooling Water |
Height (mm) |
Length (mm) |
Width (mm) |
| CY-WS100 | 4 | 100 | 115 | 45 | 80 | 2650 | 1300 | 710 |
| CY-WS200 | 4 | 200 | 230 | 76 | 120 | 2650 | 1360 | 710 |
| CY-WS200 | 5 | 200 | 230 | 62 | 50 | 2650 | 1620 | 710 |
| CY-WS300 | 4 | 300 | 345 | 109 | 190 | 2650 | 1410 | 730 |
| CY-WS300 | 5 | 300 | 345 | 89 | 90 | 2650 | 1730 | 730 |
| CY-WS500 | 4 | 500 | 575 | 185 | 310 | 3170 | 1680 | 900 |
| CY-WS500 | 5 | 500 | 575 | 148 | 130 | 3170 | 2000 | 900 |
| CY-WS750 | 4 | 750 | 865 | 256 | 300 | 3260 | 1680 | 900 |
| CY-WS750 | 5 | 750 | 865 | 205 | 178 | 3260 | 2000 | 900 |
| CY-WS1000 | 5 | 1000 | 1150 | 295 | 256 | 3685 | 2180 | 980 |
| CY-WS1000 | 6 | 1000 | 1150 | 245 | 65 | 3685 | 2830 | 980 |
| CY-WS1500 | 5 | 1500 | 1725 | 460 | 390 | 3685 | 2680 | 1100 |
| CY-WS1500 | 6 | 1500 | 1725 | 380 | 95 | 3685 | 3150 | 1100 |
| CY-WS2000 | 5 | 2000 | 2300 | 540 | 345 | 3940 | 3150 | 1100 |
| CY-WS2000 | 6 | 2000 | 2300 | 490 | 130 | 3950 | 3580 | 1100 |
| CY-WS3000 | 6 | 3000 | 3450 | 730 | 190 | 4050 | 4000 | 1200 |
| CY-WS4000 | 6 | 4000 | 3450 | 910 | 310 | 4800 | 4000 | 1200 |
| CY-WS5000 | 6 | 5000 | 5750 | 1140 | 440 | 4200 | 4550 |
1350 |
FAQ:
1.Question: Which process do you adopt ?
Answer:Usually we will be according to what your raw water quality and your requested water requirement .
2. Question:Can you customize For me?
Answer :Yes. We can manufacture according your requirement , we can even design appearance of equipment .
3.Question: What standards is the Pharmaceutical Purified Water System ?
Answer: Usually there are five standards in this pharmaceutical industry , FDA,cGMP ,GMP ,USP, Japanese .
4.Question:How long is the Delivery time ?
Answer: Usually the delivery time is 35 -40 Days .
