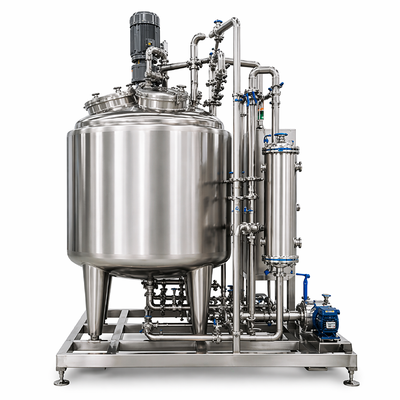

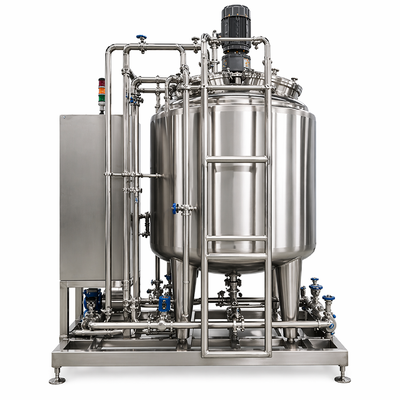

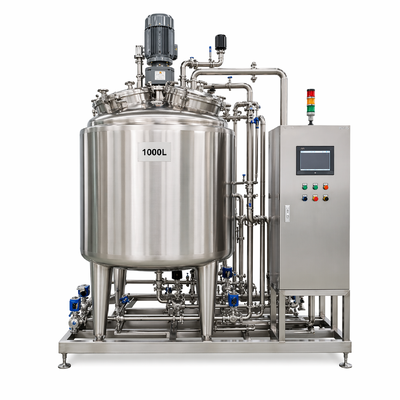

GMP Solution Preparation System 1000L with SS316L Mixing Tank (Automatic PLC Control, CIP Ready)
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | CHONGYANG |
| Certification: | ISO,CE |
| Model Number: | CY-SPS-500L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Wooden Box |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets/Month |
|
Detail Information |
|||
| Capacity: | 300L / 500L / 1000L / 2000L / 3000L / Custom | Material: | SS316L (Product Contact Parts), SS304 (Frame) |
|---|---|---|---|
| Surface Finish: | Internal Ra ≤0.4μm, External Matte/Polished | Control System: | PLC Automatic Control With Touch Screen (Siemens/Schneider Optional) |
| Function: | Mixing, Heating & Cooling Jacket, CIP/SIP Cleaning System | Application: | Pharma / Biopharma / Cosmetic / Food Industry |
Product Description
1. Product Name
GMP Solution Preparation System 1000L with SS316L Mixing Tank (Automatic PLC Control, CIP Ready)
2. Product Overview
The 1000L Solution Preparation System is designed for hygienic liquid mixing and preparation in high-standard production environments. Built with SS316L contact surfaces and advanced PLC automation, the system ensures stable performance, precise control, and efficient cleaning. It supports consistent batch processing and meets strict cleanliness and operational requirements.
3. Applications
- Biotech liquid preparation
- Cosmetic liquid mixing
- Food & beverage processing
- Laboratory and pilot production
- High-purity liquid formulation
4. Process Flow Diagram
→ Heating/Cooling Jacket → Circulation Loop → Filtration Unit → Storage Tank
Process Description:
Water and raw materials are introduced into the mixing tank through a controlled dosing system. The agitator ensures uniform blending. The jacket system maintains required temperature. The solution is circulated and filtered before being transferred to storage or downstream processing.
5. Key Features
- SS316L contact parts with sanitary design
- Smooth internal surface (Ra ≤ 0.4 μm optional)
- Fully automatic PLC control with touch screen
- CIP cleaning system for efficient maintenance
- Optional heating & cooling jacket
- Stable mixing with variable speed agitator
- Compact skid-mounted design for easy installation
6. Technical Parameters
| Item | Specification |
|---|---|
| Capacity | 1000 L |
| Contact Material | SS316L |
| External Material | SS304 |
| Surface Finish | ≤0.8 μm (≤0.6 / ≤0.4 μm optional) |
| Mixing Type | Top-mounted agitator |
| Mixing Speed | 0–60 rpm (adjustable) |
| Heating/Cooling | Jacketed tank (optional) |
| Control System | PLC + HMI (automatic) |
| Cleaning System | CIP ready |
| Power Supply | 220V / 380V, 50/60 Hz |
| Installation | Skid-mounted |
| Design Standard | GMP-oriented, ISO |
7. Configuration List
| Component | Description |
|---|---|
| Mixing Tank | 1000L SS316L vessel with manway |
| Agitator | Top-mounted, variable speed |
| Jacket System | Heating/cooling jacket (optional) |
| Control Panel | PLC with touch screen |
| Valves | Sanitary diaphragm valves |
| Piping | SS316L hygienic piping |
| Pump | Transfer pump (optional) |
| Filter Unit | Cartridge/membrane filtration |
| CIP System | Cleaning interface connections |
| Platform | Stainless steel base frame |
8. Project Cases
Case 1 – Southeast Asia Production Facility
A 1000L system was installed for liquid formulation. The automated control improved process efficiency and reduced manual operation.
Case 2 – Middle East Industrial Plant
System with heating jacket enabled precise temperature control, ensuring stable product quality.
9. Certifications & Standards
- GMP-oriented design principles
- ISO 9001 Quality Management
- Hygienic piping and sanitary fittings
- Optional compliance with FDA/WHO guidelines
10. FAQ
Q1: Can the system be customized?
Yes, capacity, configuration, and automation level can be tailored.
Q2: Is automatic operation available?
Yes, PLC control with touch screen and recipe management is supported.
Q3: Does the system include cleaning functions?
It is designed with CIP-ready connections for efficient cleaning.
Q4: Can heating and cooling be integrated?
Yes, jacketed tank options are available.
Q5: Do you provide installation support?
Yes, installation and commissioning services are available worldwide.
11. CTA (Call To Action)
Looking for a reliable 1000L solution preparation system?
Contact us for a customized design and quotation.
