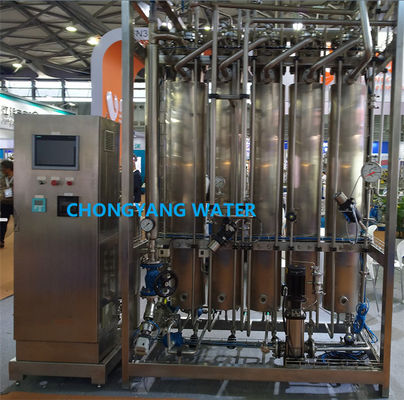

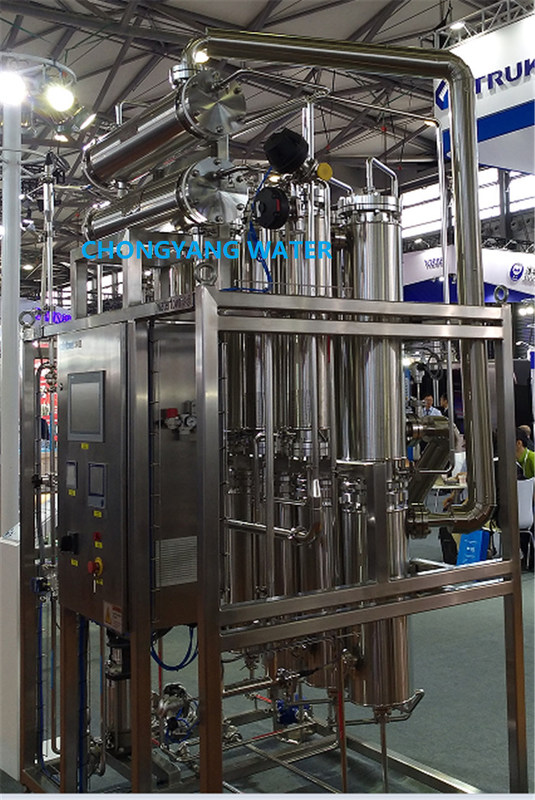

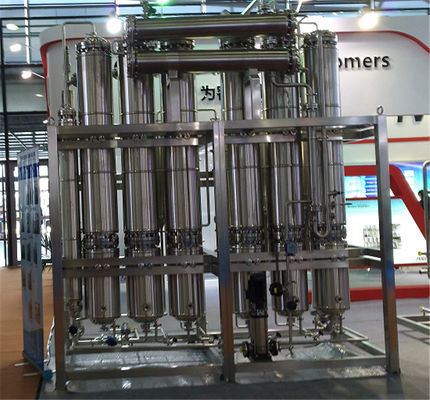

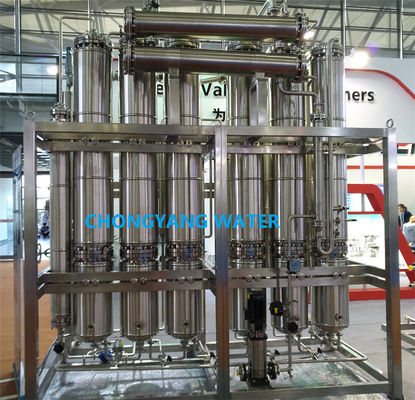

WFI Generation Plant Water Distiller For Plants
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-WFI-300Liter/Hour |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Month |
|
Detail Information |
|||
| Product Name: | Multi Column Distillation Plant | Capacity: | 100L/H-10,000L/H |
|---|---|---|---|
| Control System: | PLC/DCS/HMI | Material Of Columns: | SS304/SS316/ Stainless Steel |
| Instrumentation: | Flow/Level/Pressure/Temperature/Vibration/Analytical | Application: | Water For Injection |
| Vessels: | Reactor/Storage/Mixing/Separator | Pump Type: | Grundfos ,CNP |
| Distillation Columns: | Customized | Design Temperature: | Customized |
| Highlight: | WFI Generation Plant Water Distiller,Stainless Steel wfi generation plant,Multi Column Water Distiller For Plants |
||
Product Description
Product Name:WATER FOR INJECTION GENERATION PLANT
Water For Injection Systems:
Regarding microbiological results,for water for injection,it is expected that they be essentially sterile . Since sampling frequently is performed in non-sterile areas and is not truly aseptic occasional low level counts due to sampling errors may occur.Agency policy ,is that less than 10CFU/100ML is an acceptable action limit. None of the limits for water are pass/fail limits. All limits are action limits . All liits are action limits .When action limits are exceeded the firm must investigate the cause of the porblem ,take action to correct the problem and assess the impact of the microbial contamination of products manufactured with water and document the result of their investigation .
● The system shall operate automatically and provide a “safe state” in which likelihood of injury to personnel and damage to the unit is minimized.
● In addition, it must be equipped with alarms and warnings in order to guarantee and report product constant quality.
● Whenever the pharmaceutical manufacturer shall use high purity water as stated in Pharmacopoeias.
● Whenever the amount of water required is higher than 100 l/h, the use of multiple-effect configuration starts being more profitable.
● Whenever the water loop has to be maintained at 80ºC in order to keep sterile conditions of the same.
Water For Injection System Standard:
| USP | Ph.Eur. | ChP | ||
| TOC | ppm C | ≤ 0.50 | ≤ 0.50 | Same as Ph. Eur. |
| Conductivity | µS/cm | ≤ 1.3 (25°C) | ≤ 1.1 (20°C) | Same as Ph. Eur. |
| Nitrate (NO3) | - | ≤ 0.2 ppm | ≤ 0.000006% | |
| Aerobic bacteria | CFU/100 ml | ≤ 10 | ≤ 10 | Same as Ph. Eur. |
| Bacterial Endotoxins | /ml | ≤ 0.25 EU | ≤ 0.25 IU | ≤ 0.25 EUI |
FAQ:
1.Question:Which process do you adopt ?
Answer: Usually we will be according to what your raw water quality and your requested water requirement .
2. Question: Can you customize For me?
Answer :Yes. We can manufacture according your requirement , we can even design appearance of equipment .
3.Question: What standards is the Pharmaceutical Purified Water System ?
Answer:Usually there are five standards in this pharmaceutical industry , FDA,cGMP ,GMP ,USP, Japanese .
4.Question :How long is the Delivery time ?
Answer :Usually the delivery time is 35 -40 Days .
