Reverse Osmosis system EDI with DQ IQ OQ PQ SAT FAT
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-ROE-2000L/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 4999-10000 |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Month |
|
Detail Information |
|||
| Application: | Pharmaceutical | Connection Type: | Clamp/Weld |
|---|---|---|---|
| Controls: | PLC/HMI | Documentation: | DQ/IQ/OQ/PQ |
| Filter Type: | Cartridge/Bag | Material: | 316L Stainless Steel |
| Sanitization: | CIP/SIP | Validation: | 21 CFR Part 11 |
Product Description

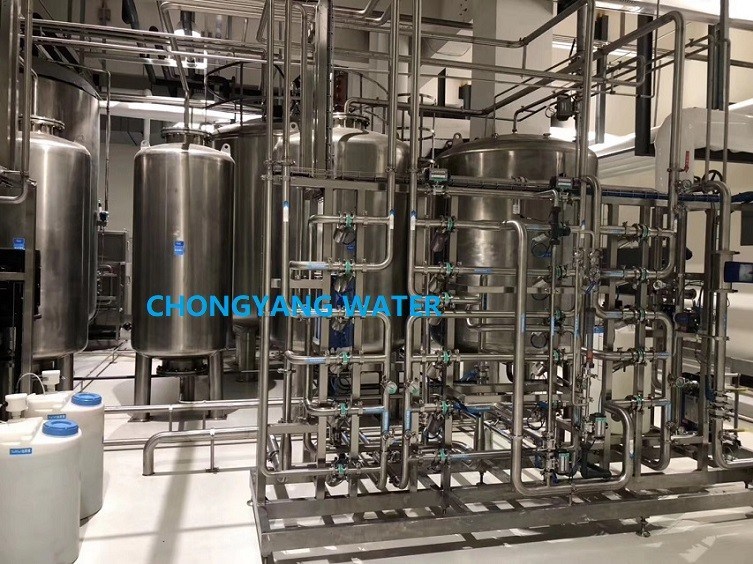

Product Name : Reverse Osmosis system EDI with DQ IQ OQ PQ SAT FAT
It is important to control microorganism and bacteria for purified water equipment ,which include as following these aspect:
- The choice of the host material,all of them adopt Stainless Steel 304 ,316L,BPE standard ,the conveyor part is suggest to automatically weld .
- Disinfection Method : Pasteurization and Ozonization .
- Pipeline and Valve : between the pipeline of the used point and valve ,we are accord to 3D regulations to execute to prevent dead water ,pipeline has certain slope .equal to 5‰.
- The welding process: Our factory have automatcial machinery .
- It is important to control flowrate of circulation pipeline.
- The various meters monitor in time ,that know the condition of water quality at any time .
We can choose the different disinfection methods according to condition on sit .
Pharmaceutical water is divided into four part :
| Item | Process | Way |
| 1 | Pre-treatment part | Quartz Sand filter + Activated Carbon filter |
| 2 | Reverse Osmosis Device Part | Normal & High temperature Membrane |
| 3 | Disinfection Part | Hot water ,Ozone, |
| 4 | Distribution Part | U type , |
Main Components of Water System
| Item | Parts Name | Brand |
| 1 | RO membrane | DOW ,HYDRANAUTICS |
| 2 | Valve | Diaphragm Valve ,Burket, Kinglai ,Yuan'an |
| 3 | Flowmeter | KROHNE |
| 4 | Pump | Grundfos ,CNP |
| 5 | Pressure Gauge | WEIKI |
| 6 | PLC | SIEMENS |
FAQ of Technical Parameter :
| Item | Question |
| 1 | What is raw water quality ?or do you have report of raw water quality ? |
| 2 | How many capacity is it ? we can provide 1000 litre to 100 T per hour . |
| 3 | What water quality do you need ? Or where will be it used for ? for drinking ,pharmaceutical ,chemical ,cosmetics and so on . |
| 4 | What materials ? UPVC ? Stainless Steel ,304,316? |
| 5 | What brand does main components you need ? pump ?RO Membrane ?and so on . |
