Flowmeter RO Pharma Water System With DQ IQ OQ PQ SAT FAT
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-ROE-2000L/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 4999-10000 |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Month |
|
Detail Information |
|||
| Product Name: | Pharma Reverse Osmosis System | Connection Type: | Clamp/Weld |
|---|---|---|---|
| Controls: | Manual ,Auto | Documentation: | DQ/IQ/OQ/PQ |
| Filter Type: | Cartridge/Bag | Material: | 316L Stainless Steel |
| Sanitization: | CIP/SIP | Validation: | 21 CFR Part 11 |
| Highlight: | Flowmeter Pharma Water System,CIP SIP Pharma Water System,Flowmeter Pharmaceutical Ro Plant |
||
Product Description

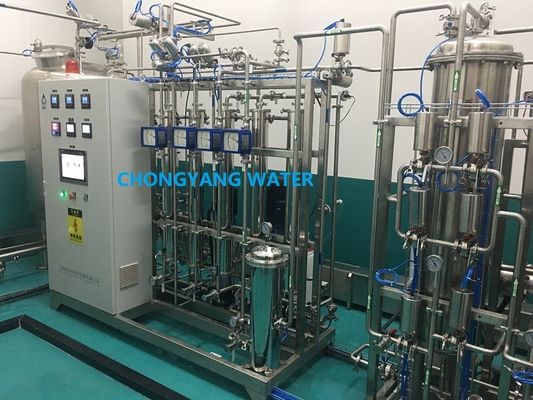

Product Name : KROHNE Flowmeter Reverse Osmosis Pharma Water System with DQ IQ OQ PQ SAT FAT
Since CY-Water was established ,that mainly engaged in pharmaceutical,biotechnology,health care products,cosmetics ,hopsitals and other water purification equipment ,water for injection,can provide from raw water to qualified purified water,water for injection (including water ) a full set of process design,equipment manufacturing ,installation ,debugging and DQ,IQ,OQ and other documents one stop solution.also provide the design,installation and verification services of pubic works (pure steam ,clean compressed air,nitrogen) and process production equipment (CIP,SIP,automation systems) for you.
1.Function Description
2.Design Description
3.Material Proof of Parts connect with water
4. Inspection Report of Instrument
5.Welding Record
6. Endoscopy Record
7. Finish Inspection Record
8. The relevant DQ/OQ scheme.
| Product Name | Function |
| Raw water tank | Storage raw water ,regulating the water intake,and precipitation of the impurities in the water. |
| Sand filter | it can remove sediment,impurity ,suspended objects and the other particles in water to reduce turbidity of water. |
| Carbon filter | The used of carbon adsorption principle that to absorb the different colors,odors,residual chlorine and so on . |
| Softener | The used of special resin absorb Ca &Mg ions in water ,then replace them ,that to reduce water hardness. |
| Security filter | Prevent impurity of big particles into Reverse Osmosis Membrane ,resulting in damage to membrane ,that can protect RO Membrane. |
| Reverse Osmosis | By Principle of Reverse Osmosis to achieve purpose of producing pure water. |
| Double Stage Pure Water Tank | Storage RO Water ,that provide pure water source for the latter system |
| PH Regulation System | By PH regulation to reomove CO2 from water to ensure quality of production water . |
| UV Sterilizer | Killing residual bacteria in water to ensure water quality |
| Nanofiltration Membrane | Remove bacteria that killed by UV and the other particles . |
| Ozone Sterilization | Used for cleaning purified water pipe and purified water tank. |
| Booster Pump of Purified Water | Used for transporting pure water for water points . |
FAQ:
1.Question: How to maintain the water treatment equipment ?
Answer : Purified Water Equipment can be remotely controlled , In case there is fault of software .
2.Question:How to treat hardware problem during the guarantee period ?
Answer : Directly contact with us , CHONGYANG Water is responsible for changing parts with free. The customer bear freight cost .
3.Question : How to deal with small problem during working day ?
Answer : By wechat ,whatapp on-line in time.
