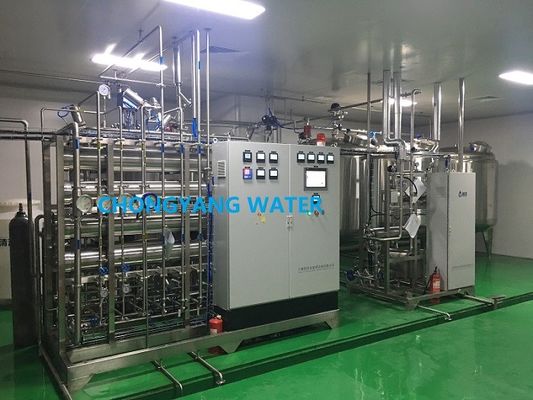

Pharma Water System Purified Water System For Pharma With DQ IQ OQ FAT SAT
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-ROE-2000L/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Month |
|
Detail Information |
|||
| Original: | CHINA | Dimension: | Customized |
|---|---|---|---|
| Filter Type: | Reverse Osmosis | Filtration Level: | 0.0001 Micron |
| OEM/ODM: | Available | Material: | Stainless Steel |
| Warranty: | 1 Year | Water Source: | Tap Water |
| FAT,SAT: | Available | Process: | Single RO,Double RO |
| Highlight: | Pharma Water Purified System,Pharma Water System with DQ,purified water system for pharma |
||
Product Description
Product Name : Water Purification System Pharmaceutical Industry With DQ,IQ,OQ,FAT ,SAT
CHONGYANG WATER Feature:
ACTIVATED CARBON FILTER :
It is effective to reduce TOC in water for Activated Carbon filter which can also remove residual Chlorine in the raw water ( Residual Chlorine of outlet <0.1ppm)
There are two layer in it , such as quartz sand and activated carbon .
It have function of wash and backwash automatic (by pneumatic angle seat control)
The Activated Carbon is equipped with residual chlorine detector on-line ,the system can alarm when the residual chlorine exceed the set value ,then remind operator .
The Activated Carbon is disinfected by Pasteurization ( 85℃).
Brief Introduction:
It is important to control microorganism and bacteria for purified water equipment ,which include as following these aspect:
- The choice of the host material,all of them adopt Stainless Steel 304 ,316L,BPE standard ,the conveyor part is suggest to automatically weld .
- Disinfection Method : Pasteurization and Ozonization .
- Pipeline and Valve : between the pipeline of the used point and valve ,we are accord to 3D regulations to execute to prevent dead water ,pipeline has certain slope .equal to 5‰.
- The welding process: Our factory have automatcial machinery .
- It is important to control flowrate of circulation pipeline.
- The various meters monitor in time ,that know the condition of water quality at any time .
We can choose the different disinfection methods according to condition on sit .
Pharmaceutical water is divided into four part :
| Item | Process | Way |
| 1 | Pre-treatment part | Quartz Sand filter + Activated Carbon filter |
| 2 | Reverse Osmosis Device Part | Normal & High temperature Membrane |
| 3 | Disinfection Part | Hot water ,Ozone, |
| 4 | Distribution Part | U type , |
Main Components of Water System
| Item | Parts Name | Brand |
| 1 | RO membrane | DOW ,HYDRANAUTICS |
| 2 | Valve | Diaphragm Valve ,Burket, Kinglai ,Yuan'an |

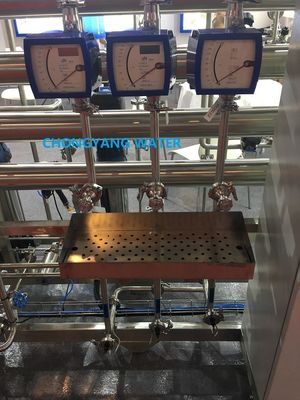

| 3 | Flowmeter | KROHNE |
| 4 | Pump | Grundfos ,CNP |
| 5 | Pressure Gauge | WEIKI |
| 6 | PLC | SIEMENS |
FAQ :
1.Which process do you adopt ?
Usually we will be according to what your raw water quality and your requested water requirement .
2. Can you customize For me?
Yes. We can manufacture according your requirement , we can even design appearance of equipment .
3.What standards is the Pharmaceutical Purified Water System ?
Usually there are five standards in this pharmaceutical industry , FDA,cGMP ,GMP ,USP, Japanese .
4.How long is the Delivery time ?
Usually the delivery time is 35 -40 Days .
5.Is pharma purified water system orbital welding ?
Yes. We weld with track welding .
