Pasteurization Disinfection Ro Water Purifier Purification Reverse Osmosis System
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-RO-500L/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard and Wood Package |
| Delivery Time: | 35 days after receiving the deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
|
Detail Information |
|||
| Conductivity: | Less Than 1.3μm/cm | Recovery Rate: | >97% |
|---|---|---|---|
| RO Housing: | SS 304 316 8040 4040 | Connection: | Clamp ,Welding |
| Power Supply: | AC 220V / AC 380V / 415V±5% 50 HZ / 60HZ | Valve Control: | Pneumatic , Manual |
| RO Membrane: | High Temperature Type | Water Tank: | Raw Water Tank ,Middle Tank,Purified Water Tank |
| RO Device: | Single RO ,Double RO | ||
| Highlight: | Pasteurization Ro Water Purifier,500L/H Ro Water Purifier,500Ltr/H ro water system in pharma industry |
||
Product Description

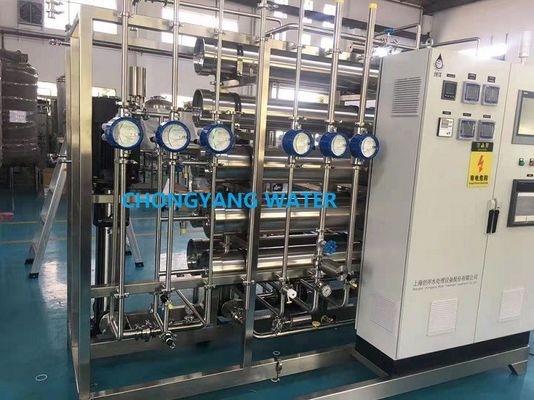

Product Name: Pasteurization Disinfection purification reverse osmosis system ro water purifier for pharmaceutical industry
CHONGYANG WATER FEATURE:
1. Single RO System :The raw water tank→the raw water pump→Multi-medium filter →Activated Carbon filter→Scale inhibitor device→The first safe filter→Frist Stage High Pressure Pump→Frist Stage RO Device→Pure water tank
2. Doubel Reverse Osmosis System:The raw water tank →the raw water pump→Quartz sand filter →Activated Carbon filter→Scale inhibitor→Frist Stage security filter→Frist Stage High Pressure Pump →Frist Stage RO Device→Frist Stage RO Water tank→Scond Stage HPP →Scond Stage RO Device →Pure Water Tank
3. 1 st Reverse Osmosis system +EDI system:the raw water tank →the raw water pump→Quartz Sand Filter→Activated Carbon filter→Softener →Frist Stage security filter→Frist Stage HHP →Frist Stage RO Device→RO water tank →EDI booster pump →EDI device→Pure Water Tank
4. Double reverse osmosis system+EDI system:The raw water tank→the raw water pump→Quartz sand filter →Activated carbon filter→Softener→Frist Stage security filter→Frist Stage RO High pressure pump→Frist Stage RO Device→Frist Stage RO Water tank →Scond Stage High Pressure Pump→Scond Stage RO Device→Scond Stage RO Water tank→EDI booster pump →→EDI Device→Pure Water Tank .
Technical Parameter:
| Output Water Capacity | 0.5m3/h--50m3/h |
| TOC | ＜100PPB |
| Conductivity | ＜0.5μs/cm |
| Microorganism | ＜100 CFU/ml |
| Endotoxin | ＜0.25EU/ml |
| Nitrate | ＜0.06PPM |
| Heavy metal | ＜0.1 PPM |
PURIFIED WATER QUALITY:
| 1st RO Water Conductivity | ≤10.0μS/cm (25℃) | 2nd RO Water Conductivity | ≤3.0μS/cm (25℃) |
| EDI Water Conductivity | ≤0.1μS/cm (25℃) | TOC | ≤ 0.5mg/l |
| Disinfection for loop | Pasteurization | Disinfection for Activated carbon | Pasteurization |
| Microbial limit | ≤ 50 CFU/100ml | ||
FAQ:
1.Question: How to maintain the water treatment equipment ?
Answer : Purified Water Equipment can be remotely controlled , In case there is fault of software .
2.Question:How to treat hardware problem during the guarantee period ?
Answer : Directly contact with us , CHONGYANG Water is responsible for changing parts with free. The customer bear freight cost .
3.Question : How to deal with small problem during working day ?
Answer : By wechat ,whatapp on-line in time.
