Pure Steam Generator For Vessels Piping Distribution Systems Autoclaves And Humidification Of Sterile Rooms
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-PS-100KGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Supply Ability: | 100 Sets/Month |
|
Detail Information |
|||
| Useful: | Disinfection & Sterilization | Material: | SS316L |
|---|---|---|---|
| Capacity: | 100KGS-10000KGS | Hot Source: | Industrial Steam |
| Product Name: | Clean Steam Generators | Control Method: | PLC+HIM SIEMENS |
| Highlight: | Sterile Rooms Humidification Steam Generation System,Autoclaves Pure Steam Generator,Vessels Pure Steam Generator |
||
Product Description

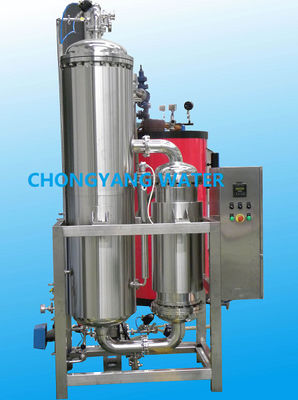

Product Name:Pure Steam Generator for vessels, Piping Distribution systems, autoclaves, and for humidification of sterile rooms
As per cGMP requirements it is recommended to use Pure Steam in place of filtered plant steam. This steam is used for all in-situ sterilization of vessels, Piping Distribution systems, autoclaves, and for humidification of sterile rooms. This will prevent contamination by particulate matter, organics and biological loads like Pyrogen, which is unavoidable in the case of plant (black) steam.
Product Feature:
In compliance with FDA,cGMP and pressure vessel requirements.
Condenser,evaporator is double tube sheet design.
All parts which is connect with feed water ,pure steam and condensate water is SS 316L.
Ensure the welding quality ,automatic track welding use the arc for protection.
Inside surface electro chemical polishing to ensure the stainless steel surface smoothness,outside surface is mat finished.
It can use non paper recorder to achieve no paper record ,or use paper recorder to record critical parameter.
Low point drainage.
Insulated design for energy saving .
Sampling is accessible for quality checking purpose
Stable performance ,easy for maintenance.
FAT will be carried out for each finished PSG to ensure quality before use .
CHONGYANG Water Spec. & Type
| Type | Capacity | Feed Water | Industry Steam | Height(mm) | Length(mm) | Wide(mm) |
| PS100 | 100 | 115 | 130 | 2100 | 900 | 570 |
| PS200 | 200 | 230 | 250 | 2500 | 900 | 570 |
| PS300 | 300 | 345 | 370 | 2500 | 1100 | 680 |
| PS400 | 400 | 460 | 480 | 2600 | 1100 | 680 |
| PS500 | 500 | 575 | 173 | 2600 | 1170 | 720 |
| PS800 | 800 | 920 | 960 | 3500 | 1775 | 930 |
| PS1000 | 1000 | 1150 | 1200 | 3700 | 1775 | 930 |
| PS2000 | 2000 | 2300 | 2400 | 4000 | 2030 | 1900 |
| PS3000 | 3000 | 3450 | 3600 | 4850 | 2030 | 1900 |
| PS4000 | 4000 | 4600 | 4800 | 5100 | 2200 |
2100 |
FAQ:
1.Question:Can you customize various capacity for us ?
Answer:Yes. We can customize for you .
2. Question: What is the raw water quality ?
Answer: Tap water, Underground Water ,it is better to be water quality that under TDS 400 PPM.
3.Question:How to install the big project of water treatment equipment ?
Answer : CHONGYANG Provide turnkey projects .
4. Question: How long is the warranty period ?
Answer: 1 year.
5. Question:How to settle water equipment's faults ?
Answer :CHONGYANG WATER can provide remotely repair for software , Change new parts without fee for hardware if it is till during guarantee period .
