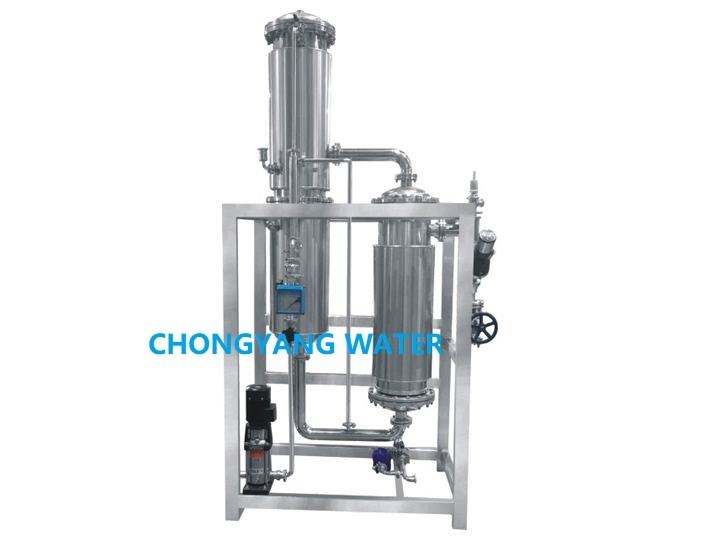

Pure Steam Generator Steam To Steam Electric Clean Steam Generator
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-PS-100KGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Supply Ability: | 100 Sets/Month |
|
Detail Information |
|||
| Useful: | Disinfection & Sterilization | Material: | SS316L |
|---|---|---|---|
| Capacity: | 100KGS-10000KGS | Hot Source: | Industrial Steam |
| Product Name: | Clean Steam Generators | Control Method: | PLC+HIM SIEMENS |
| Highlight: | Stainless Steel Sterilization Pure Steam Generator,Disinfection Pure Steam Generator,HIM Control Electric Clean Steam Generator |
||
Product Description
Product Name:Steam To Steam Pure Clean Steam Generators
Sterility - Pure steam used in pharmaceutical processes must be sterile, meaning that it is free from viable microorganisms. The USP and EP have specific requirements for the sterility of pure steam, which typically involves the use of validated sterilization processes.
Endotoxin levels - Endotoxins are bacterial toxins that can cause fever and other adverse effects in humans. Pure steam used in pharmaceutical processes must have low levels of endotoxins, as specified by the USP and EP.
Product Feature:
In compliance with FDA,cGMP and pressure vessel requirements.
Condenser,evaporator is double tube sheet design.
All parts which is connect with feed water ,pure steam and condensate water is SS 316L.
Ensure the welding quality ,automatic track welding use the arc for protection.
Inside surface electro chemical polishing to ensure the stainless steel surface smoothness,outside surface is mat finished.
It can use non paper recorder to achieve no paper record ,or use paper recorder to record critical parameter.
Low point drainage.
Insulated design for energy saving .
Sampling is accessible for quality checking purpose
Stable performance ,easy for maintenance.
FAT will be carried out for each finished PSG to ensure quality before use .
CHONGYANG Water Spec. & Type
| Type | Capacity | Feed Water | Industry Steam | Height(mm) | Length(mm) | Wide(mm) |
| PS100 | 100 | 115 | 130 | 2100 | 900 | 570 |
| PS200 | 200 | 230 | 250 | 2500 | 900 | 570 |
| PS300 | 300 | 345 | 370 | 2500 | 1100 | 680 |
| PS400 | 400 | 460 | 480 | 2600 | 1100 | 680 |
| PS500 | 500 | 575 | 173 | 2600 | 1170 | 720 |
| PS800 | 800 | 920 | 960 | 3500 | 1775 | 930 |
| PS1000 | 1000 | 1150 | 1200 | 3700 | 1775 | 930 |
| PS2000 | 2000 | 2300 | 2400 | 4000 | 2030 | 1900 |
| PS3000 | 3000 | 3450 | 3600 | 4850 | 2030 | 1900 |
| PS4000 | 4000 | 4600 | 4800 | 5100 | 2200 |
2100 |
FAQ:
1.Question:Can you customize various capacity for us ?
Answer:Yes. We can customize for you .
2. Question: What is the raw water quality ?
Answer: Tap water, Underground Water ,it is better to be water quality that under TDS 400 PPM.
3.Question:How to install the big project of water treatment equipment ?
Answer : CHONGYANG Provide turnkey projects .
4. Question: How long is the warranty period ?
Answer: 1 year.
5. Question:How to settle water equipment's faults ?
Answer :CHONGYANG WATER can provide remotely repair for software , Change new parts without fee for hardware if it is till during guarantee period .
