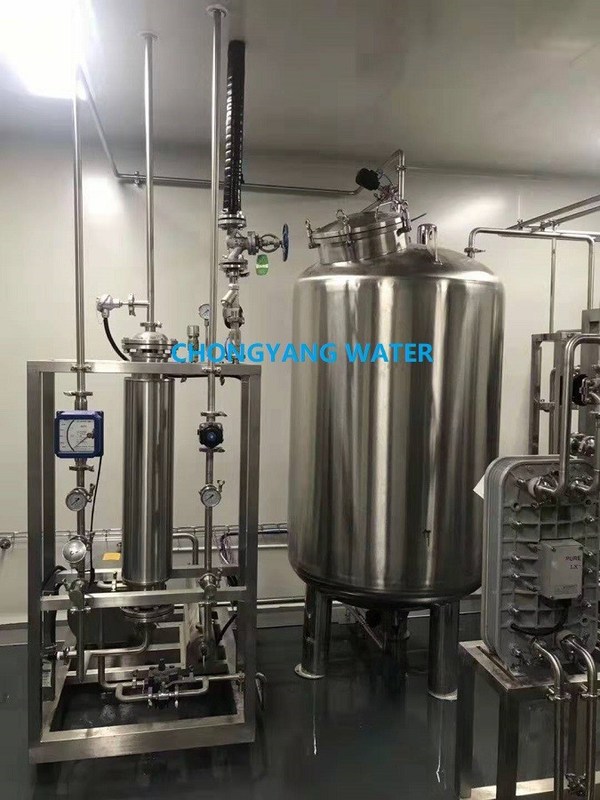

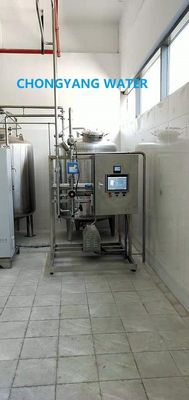

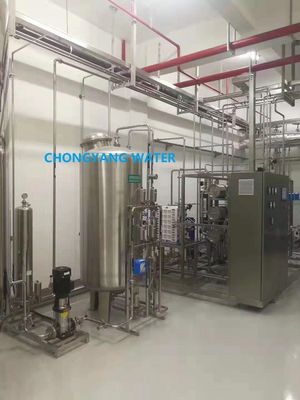

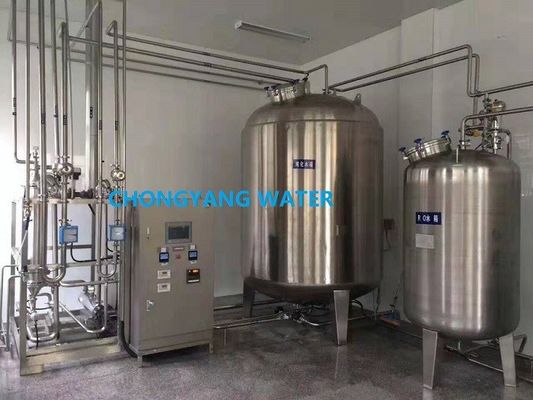

Pharma PW System With UV Sterilization Module
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO |
| Model Number: | CY-PWS-1000LPH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD 100--1000 |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Month |
|
Detail Information |
|||
| Capacity: | 250LPH-50000LPH | Conductivity: | ≤1.3 μS/cm |
|---|---|---|---|
| TOC: | ≤500 Ppb | Microbial Limit: | ≤100 CFU/ml |
| Recovery Rate: | ≥97% | RO Configuration: | Double Pass RO |
| EDI Module: | High Temperature, Normal Temperature Type | RO Membrane: | 4040 / 8040 |
| RO Housing: | SS304/SS316l | System Material: | SS304 / SS316L |
| Pipe Material: | SS316L Electropolish | Surface Finish: | Ra ≤0.6 μm |
| Highlight: | SS304L Loop Purified Water Distribution System,SS316L Loop System Water Distribution,Pharmaceutical purified water loop |
||
Product Description
Pharma PW System With UV Sterilization Module
A pharma PW system with UV sterilization module is designed to provide stable purified water for clean utility applications in biotechnology, healthcare, laboratory, and pharma-related industries.
The system is suitable for process water preparation, equipment rinsing, clean circulation loops, hygiene-sensitive production, and controlled water storage.
What Is a Pharma PW System With UV Sterilization Module?
A pharma PW system with UV sterilization module is a complete purified water generation and distribution solution designed for industries that require reliable low-conductivity water and hygienic circulation.
The system normally combines pretreatment, reverse osmosis, optional EDI polishing, UV sterilization, sanitary storage, and a controlled distribution loop.
The UV module uses ultraviolet light, usually at 254 nm, to reduce microbial load in the water stream without adding chemicals into the water.
Technical Specifications
| Item | Standard Configuration |
|---|---|
| Product Name | Pharma PW System With UV Sterilization Module |
| Production Capacity | 500 L/h – 30,000 L/h |
| Main Process | Pretreatment + RO + UV + Storage + Distribution Loop |
| UV Module | 254 nm UV Sterilization |
| RO Configuration | Single Pass RO / Double Pass RO |
| Water Quality | Low Conductivity Purified Water |
| Main Material | SS304 / SS316L |
| Control System | PLC + HMI Touch Screen |
Features & Advantages
Integrated UV Module
Helps reduce microbial load and supports stable purified water quality.
Stable PW Generation
Combines pretreatment and RO technology for reliable clean utility water.
No Chemical Addition
UV treatment works without adding chemical agents into the water.
Hygienic Loop Design
Continuous circulation helps reduce stagnant water and improve system stability.
Automatic Operation
PLC control supports alarms, monitoring, and easy system management.
Skid-Mounted Structure
Modular design simplifies installation, transportation, and commissioning.
Flexible Configuration
RO, EDI, UV, ozone, hot water, and storage systems can be customized.
Long-Term Operation
Stable pumps, sanitary piping, and practical maintenance access support daily use.
Application Industries
Biotechnology Industry
Used for clean utility water generation and controlled production environments.
Healthcare Industry
Suitable for equipment cleaning, hygiene-sensitive water use, and controlled utility systems.
Laboratory & Research Centers
Provides stable purified water for testing, sample preparation, and research environments.
IVD Industry
Suitable for reagent preparation, equipment cleaning, and controlled water applications.
Medical Device Industry
Used for precision equipment cleaning, component rinsing, and clean production environments.
Biopharma Industry
Applicable for biological production, formulation preparation, and clean utility systems.
Production Process
The following process flow shows a typical PW system with UV sterilization module.
Optional Configurations
- Double Pass RO System
- EDI Polishing Unit
- Ozone Sanitization System
- Hot Water Sanitization System
- Online Conductivity Monitoring
- Online TOC Monitoring
- SS316L Sanitary Storage Tank
- SS316L Electropolished Piping
- Automatic CIP System
- UV Intensity Monitoring
- Modular Skid-Mounted Frame
- Distribution Circulation Loop
