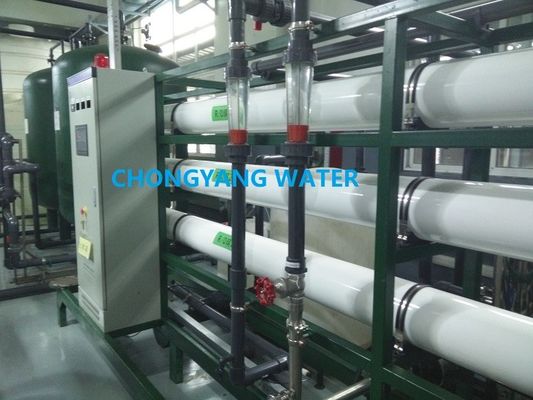

Industrial RO Plant Ro Water Treatment System For Large Equipment 380V 50Hz
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-RO-10000L/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
|
Detail Information |
|||
| Product Name: | Power Station RO Purification System | Capacity: | Customized |
|---|---|---|---|
| RO Brand: | DOW, HYDRANAUTICS | RO Housing Type: | 8040,4040 |
| Core Size: | 0.22μm,1μm,5μm | Process: | Pre-treatment ,RO Device, |
| Water Tank Volume: | 1M3,3m3,10m3 | Filter Head Motor: | Multi-Way Valve |
| Filter Material: | Sand,Activated Carbon ,Resin | Raw Water Pump: | Grundfos ,CNP |
| Highlight: | DOW Industrial RO Plant,Customized Industrial RO Plant,ro water treatment system 50Hz |
||
Product Description
Product Name: 20000 Liters Per Hour RO Water Treatment System For Large Equipment 380V 50Hz
What is the remineralization,Deionization and Carbon filtration ?
Remineralization: The purified water may be remineralized to add back any minerals that were removed during the RO process. This can be done by adding mineral salts to the water.
Deionization: The purified water may be subjected to deionization to remove any remaining ions that were not removed by the RO membrane. This can be done using ion exchange resins.
Carbon filtration: The purified water may be passed through activated carbon filters to remove any remaining organic compounds or residual disinfectants.
The Partial Product Specification:
| Type |
Capacity (M3/H) |
Pipe DN (mm) |
WP (MPa) |
Material |
Work Method |
| CY-RO-0.25 | 0.25 | DN20 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-0.5 | 0.5 | DN20 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-1 | 1 | DN25 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-2 | 2 | DN32 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-3 | 3 | DN40 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-5 | 5 | DN50 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-8 | 8 | DN65 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-10 | 10 | DN80 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-15 | 15 | DN100 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-20 | 20 | DN100 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-30 | 30 | DN125 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-40 | 40 | DN150 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-50 | 50 | DN200 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
FAQ:
1.Question:Can you customize various capacity for us ?
Answer:Yes. We can customize for you .
2. Question: What is the raw water quality ?
Answer: Tap water, Underground Water ,it is better to be water quality that under TDS 400 PPM.
3.Question:How to install the big project of water treatment equipment ?
Answer : CHONGYANG Provide turnkey projects .
4. Question: How long is the warranty period ?
Answer: 1 year.
5. Question:How to settle water equipment's faults ?
Answer :CHONGYANG WATER can provide remotely repair for software , Change new parts without fee for hardware if it is till during guarantee period .
