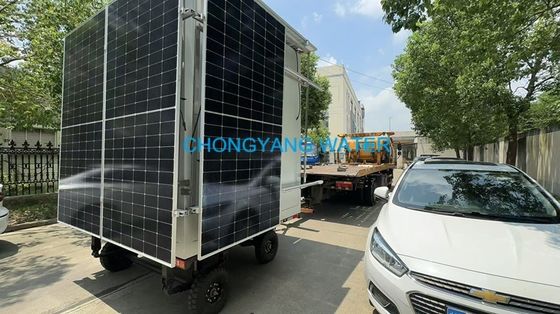

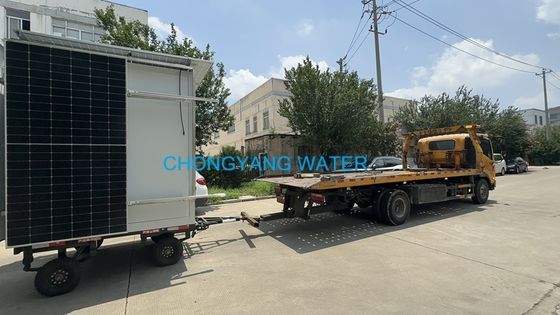

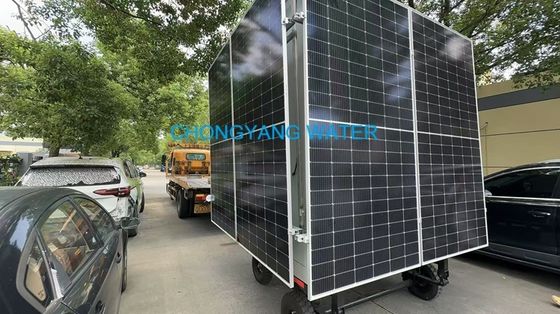

A Mobile Solar Photovoltaic Reverse Osmosis System
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-SRO-250L/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 4999-10000 KGS |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
|
Detail Information |
|||
| Product Name: | Mobile Solar Photovoltaic RO System | Capacity: | Customized |
|---|---|---|---|
| Process: | Pre-treatment,RO Device | Requirement: | Customized |
| Material: | Stainless Steel,UPVC | Water Source: | Tap Water, Underground, |
| Water Tank: | Raw Water Tank,Middle Tank,Pure Water Tank | Filter Housing: | FRP, Stainless Steel |
| Pump: | Grundfos ,CNP | ||
Product Description
1. What it is:
A Mobile Solar PV RO System is a water purification unit that uses energy from the sun to make dirty or salty water clean and safe to drink. It is built on a trailer or cart for easy movement.
2. What it does (Its Purpose):
Its main job is to provide clean drinking water in remote places without access to electricity or a stable water supply. It is perfect for emergency relief, military camps, rural villages, and construction sites.
3. How it works (The Process):
-
Solar Power: Solar panels catch sunlight and convert it into electricity.
-
Power Control: A solar charge controller manages the power, storing the energy in batteries for use when the sun isn't shining, and powering an inverter.
-
Water Pumping: The inverter provides AC power to run a feed water pump, which draws water from a well, river, or pond.
-
Water Cleaning: The water is forced at high pressure through a Reverse Osmosis (RO) Membrane. This very fine membrane acts like a super-filter, removing salt, bacteria, viruses, and other harmful contaminants.
-
Final Touch: Clean water is collected in a storage tank. Often, a UV sterilizer is used for a final disinfection to ensure the water is completely safe.
Basic Parameters
| Parameter | Model 250L | Model 500L | Model 1000L |
|---|---|---|---|
| Clean Water Output (per hour) | 250 Liters | 500 Liters | 1000 Liters |
| Solar Power (Solar Panels) | 1.0 - 1.5 kW | 2.0 - 2.5 kW | 4.0 - 5.0 kW |
| Battery Storage | 4 kWh | 8 kWh | 16 kWh |
| RO Membrane Type | Standard 4-inch | Standard 4-inch | Standard 8-inch |
| Water Recovery Rate | ~40-50% | ~40-50% | ~40-50% |
| Pretreatment | Sediment Filter, Carbon Filter | Sediment Filter, Carbon Filter | Sediment Filter, Carbon Filter, Softener (optional) |
| Post-Treatment | UV Sterilizer (Standard) | UV Sterilizer (Standard) | UV Sterilizer (Standard) |
| Mobility | Trailer-mounted | Trailer-mounted | Trailer-mounted |
| Ideal For | Small families, small camps | Large families, medium camps, small clinics | Large camps, small communities, emergency centers |
