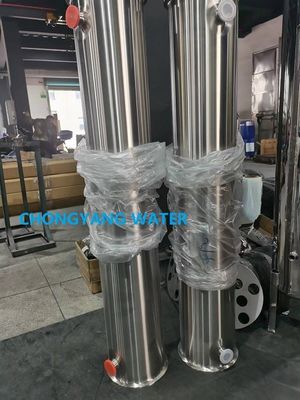

4040 Ss Ro Membrane Housing Ro Membrane Vessel
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO |
| Model Number: | CY-MK-8040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Sets/Month |
|
Detail Information |
|||
| Product Name: | SS RO Housing | Material: | Stainless Steel |
|---|---|---|---|
| Pressure: | 3Bar | Color: | White |
| HS Code: | 8421999090 | Connection: | Clamp ,Flange |
| Highlight: | 4040 ss ro membrane housing,ss ro membrane housing 1336mm,4040 ro membrane vessel |
||
Product Description
Product Name: RO Stainless Steel 4040 Membrane Housing – Side Entry Port
RO Stainless Steel 4040 Membrane Housing – Side Entry
Product Specifications:
Resistant to UV rays and sunlight
Able to withstand high and variable temperatures
Capable of supporting process piping
Lighter than FRP housings
304L stainless steel end port entry connections
Stainless steel seamless highly polished exterior
Buna-N double O-rings for sealing integrity
FNPT ports
True – Clamp
Integrated clamping system
The 8040 housing feature:
- Reliable and simple structure
- Good design for polished outer layer
- The safety bolt
- The design of high quality polished inner layer is easier to assemble membrane core.
8040 Membrane Choice Type :
| Spec.&Type | L(mm) | L1(mm) | D(mm) | A(Inch) | B(Inch) |
| BZD-4021 | 609 | 525 | Φ102 | 3/4”(Φ25) | 1/2”(Φ19) |
| BZD-4040-1 | 1094 | 1010 | Φ102 | 3/4”(Φ25) | 1/2”(Φ19) |
| BZD-4040-2 | 2115 | 2020 | Φ102 | 3/4”(Φ25) | 1/2”(Φ19) |
| BZD-4040-3 | 3120 | 3036 | Φ102 | 1”(Φ38) | 1/2”(Φ19) |
| Spec.&Type | L(mm) | L1(mm) | D(mm) | A(Inch) | B(Inch) |
| BZD-8040-1 | 1336 | 1100 | Φ203 | 1.5”(Φ38) | 1”(Φ32) |
| BZD-8040-2 | 2352 | 2126 | Φ203 | 1.5”(Φ38) | 1”(Φ32) |
| BZD-8040-3 | 3368 | 3142 | Φ203 | 2”(Φ51) | 1”(Φ32) |
| BZD-8040-4 | 4384 | 4158 | Φ203 | 2”(Φ51) | 1”(Φ32) |
| BZD-8040-5 | 5400 | 5174 | Φ203 | 2”(Φ51) | 1”(Φ32) |
| BZD-8040-6 | 6416 | 6190 | Φ203 | 2”(Φ51) | 1”(Φ32) |
FAQ:
1.Question:Can you customize various capacity for us ?
Answer:Yes. We can customize for you .
2. Question: What is the raw water quality ?
Answer: Tap water, Underground Water ,it is better to be water quality that under TDS 400 PPM.
3.Question:How to install the big project of water treatment equipment ?
Answer : CHONGYANG Provide turnkey projects .
4. Question: How long is the warranty period ?
Answer: 1 year.
5. Question:How to settle water equipment's faults ?
Answer :CHONGYANG WATER can provide remotely repair for software , Change new parts without fee for hardware if it is till during guarantee period .
