Stainless Steel RO Membrane Housing Reverse Osmosis Pressure Vessels For UF NF MF Membrane
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO |
| Model Number: | CY-MK-8040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Sets/Month |
|
Detail Information |
|||
| Product Name: | SS RO Housing | Material: | Stainless Steel |
|---|---|---|---|
| Pressure: | 3Bar | Color: | White |
| HS Code: | 8421999090 | Connection: | Clamp ,Flange |
| Highlight: | MF Stainless Steel RO Membrane Housing,Stainless Steel RO Membrane Housing,Reverse Osmosis Pressure Vessel |
||
Product Description
Product Name: Stainless Steel Membrane Housing Pressure Vessels For Commercial UF NF MF Membrane Water Treatment System
Applied Membranes stainless steel housings are available in your choice of U-Pin or Clamp-On end plug configurations for fast and easy membrane replacement and maintenance. Offered in industry-standard sizes, these pressure vessels are designed for direct connection to industry-standard membrane elements. Ideal for use in reverse osmosis, microfiltration, ultrafiltration, and nanofiltration water treatment systems to treat drinking water and a wide variety of commercial and industrial applications.
The 8040 housing feature:
- Reliable and simple structure
- Good design for polished outer layer
- The safety bolt
- The design of high quality polished inner layer is easier to assemble membrane core.
8040 Membrane Choice Type :

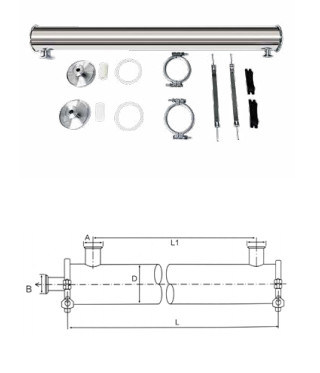

| Spec.&Type | L(mm) | L1(mm) | D(mm) | A(Inch) | B(Inch) |
| BZD-4021 | 609 | 525 | Φ102 | 3/4”(Φ25) | 1/2”(Φ19) |
| BZD-4040-1 | 1094 | 1010 | Φ102 | 3/4”(Φ25) | 1/2”(Φ19) |
| BZD-4040-2 | 2115 | 2020 | Φ102 | 3/4”(Φ25) | 1/2”(Φ19) |
| BZD-4040-3 | 3120 | 3036 | Φ102 | 1”(Φ38) | 1/2”(Φ19) |
| Spec.&Type | L(mm) | L1(mm) | D(mm) | A(Inch) | B(Inch) |
| BZD-8040-1 | 1336 | 1100 | Φ203 | 1.5”(Φ38) | 1”(Φ32) |
| BZD-8040-2 | 2352 | 2126 | Φ203 | 1.5”(Φ38) | 1”(Φ32) |
| BZD-8040-3 | 3368 | 3142 | Φ203 | 2”(Φ51) | 1”(Φ32) |
| BZD-8040-4 | 4384 | 4158 | Φ203 | 2”(Φ51) | 1”(Φ32) |
| BZD-8040-5 | 5400 | 5174 | Φ203 | 2”(Φ51) | 1”(Φ32) |
| BZD-8040-6 | 6416 | 6190 | Φ203 | 2”(Φ51) | 1”(Φ32) |
FAQ:
1.Question:Can you customize various capacity for us ?
Answer:Yes. We can customize for you .
2. Question: What is the raw water quality ?
Answer: Tap water, Underground Water ,it is better to be water quality that under TDS 400 PPM.
3.Question:How to install the big project of water treatment equipment ?
Answer : CHONGYANG Provide turnkey projects .
4. Question: How long is the warranty period ?
Answer: 1 year.
5. Question:How to settle water equipment's faults ?
Answer :CHONGYANG WATER can provide remotely repair for software , Change new parts without fee for hardware if it is till during guarantee period .
