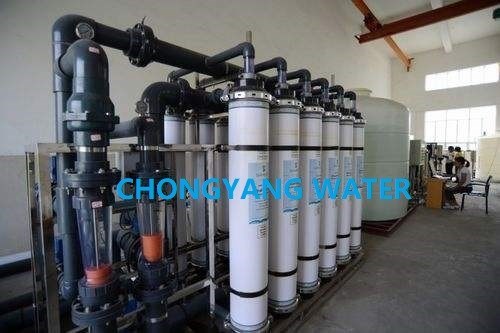

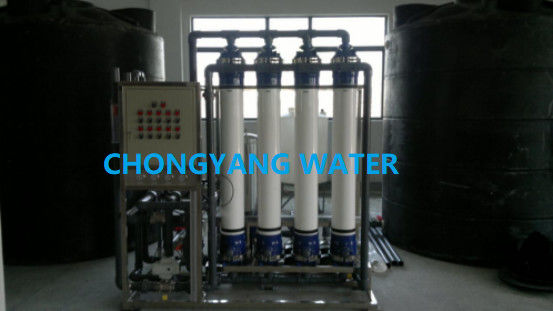

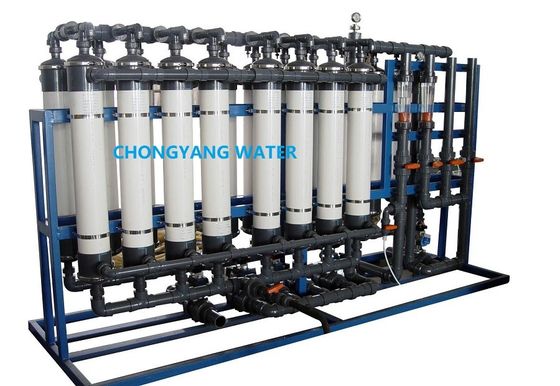

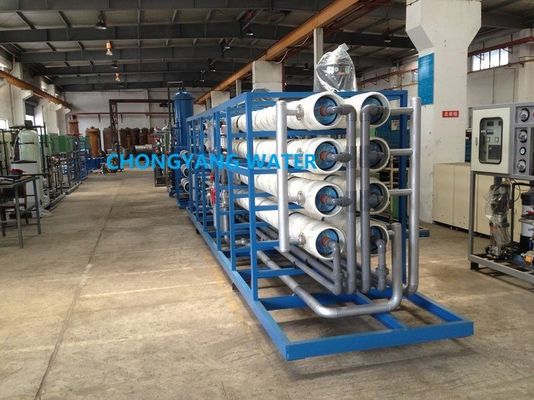

Fresh Water UF System Water Treatment 5000lph Drinking Water Treatment Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-UF-10000L/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
|
Detail Information |
|||
| Product Name: | Ultrafiltration Plant | Membrane: | UF Membrane |
|---|---|---|---|
| Material: | UPVC | Filter Medium: | Unavailable |
| Capacity: | 10000L/H | Water Source: | Tap Water, Underground |
| Filter Area: | 2-20m2 | Operating Temperature: | 5-50℃ |
| Useful: | Filtering | Pressure: | 0.2-0.6Mpa |
| Highlight: | Uf System Drinking Water Treatment,Fresh Water uf system water treatment,UPVC Drinking Water Treatment Machine |
||
Product Description
Product Name:Drinking Water Treatment Machine Fresh Water Ultrafiltration System 50% - 57% Recovery Rate
What are some common issues that can arise with ultrafiltration systems?
While ultrafiltration systems are generally reliable and require less maintenance than other water treatment systems, they can still experience issues that affect their performance. Here are some of the common issues that can arise with ultrafiltration systems:
Membrane fouling: Membrane fouling occurs when particles and impurities accumulate on the surface of the membrane, reducing its filtration efficiency. This can be caused by factors such as high levels of suspended solids in the feed water, bacterial growth, or inadequate backwashing.
Membrane scaling: Membrane scaling occurs when minerals and other dissolved solids in the feed water accumulate on the surface of the membrane, reducing its filtration efficiency. This can be caused by factors such as high levels of hardness in the feed water or inadequate scaling prevention.
The partial product specification:
| Type | Capacity (M3/H) |
Pipe DN (mm) |
WP (MPa) |
Material | Work Method |
| CY-UF-0.5 | 0.5 | DN20 | ≤0.3 | Stainless Steel/ABS | Full Automatic/Semi-Automatic |
| CY-UF-1 | 1 | DN25 | ≤0.3 | Stainless Steel/ABS | Full Automatic/Semi-Automatic |
| CY-UF-2 | 2 | DN32 | ≤0.3 | Stainless Steel/ABS | Full Automatic/Semi-Automatic |
| CY-UF-3 | 3 | DN40 | ≤0.3 | Stainless Steel/ABS | Full Automatic/Semi-Automatic |
| CY-UF-5 | 5 | DN50 | ≤0.3 | Stainless Stee/ABS | Full Automatic/Semi-Automatic |
| CY-UF-10 | 10 | DN80 | ≤0.3 | Stainless Stee/ABS | Full Automatic/Semi-Automatic |
| CY-UF-15 | 15 | DN100 | ≤0.3 | Stainless Stee/ABS | Full Automatic/Semi-Automatic |
| CY-UF-20 | 20 | DN100 | ≤0.3 | Stainless Stee/ABS | Full Automatic/Semi-Automatic |
| CY-UF-30 | 30 | DN125 | ≤0.3 | Stainless Stee/ABS | Full Automatic/Semi-Automatic |
| CY-UF-40 | 40 | DN150 | ≤0.3 | Stainless Stee/ABS | Full Automatic/Semi-Automatic |
| CY-UF-50 | 50 | DN200 | ≤0.3 | Stainless Stee/ABS |
Full Automatic/Semi-Automatic |
FAQ:
1.Question:Can you customize various capacity for us ?
Answer:Yes. We can customize for you .
2. Question: What is the raw water quality ?
Answer: Tap water, Underground Water ,it is better to be water quality that under TDS 400 PPM.
3.Question:How to install the big project of water treatment equipment ?
Answer : CHONGYANG Provide turnkey projects .
4. Question: How long is the warranty period ?
Answer: 1 year.
5. Question:How to settle water equipment's faults ?
Answer :CHONGYANG WATER can provide remotely repair for software , Change new parts without fee for hardware if it is till during guarantee period .
