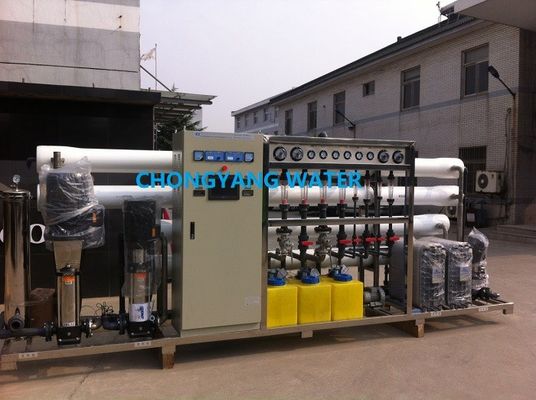

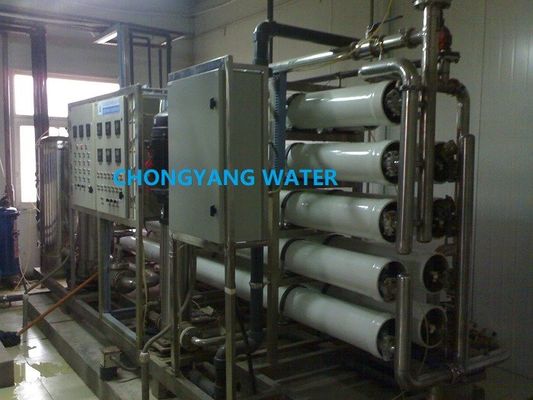

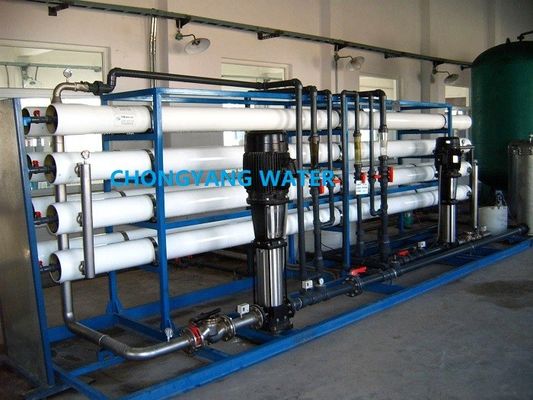

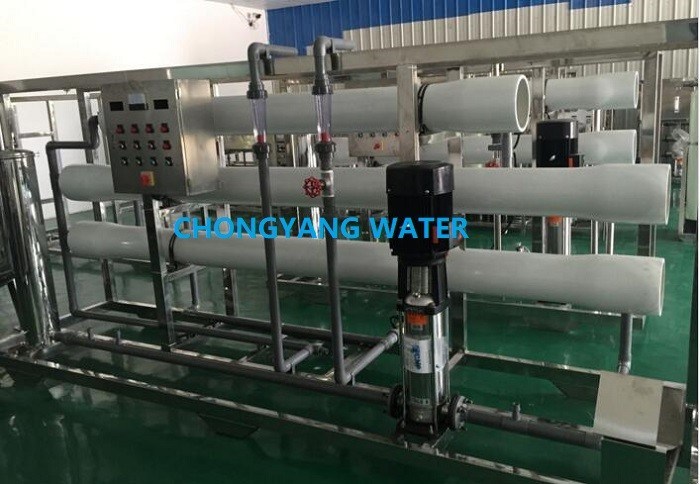

DOW RO Membrane Full Automatic Double Pass Reverse Osmosis System
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-RO-10000L/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Month |
|
Detail Information |
|||
| Product Name: | RO Plant | Capacity: | 10000L/H-100000L/H |
|---|---|---|---|
| Material: | Stainless Steel 304 , 316L UPVC | RO Membrane: | Double RO ,Single RO |
| Water Tank: | Raw Water Tank,RO Water Tank ,Middle Water Tank | Pr-treatment: | Multi-medium Filter, Activated Carbon Filter, Softener |
| Pump Brand: | Grundfos , CNP | RO Housing Material: | SS, FRP |
| Conductivity: | 2-5us/cm | Valve: | Butterfly Valve |
| Highlight: | Stainless Steel Dow Ro Membrane,Full Automatic dow ro membrane System,double pass reverse osmosis system |
||
Product Description
Product Name:DOW RO membrane for reverse osmosis system full automatic operation single RO Double RO System
What is the Reverse Osmosis System ?
Reverse osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions, large particles, and other impurities from water.
In the reverse osmosis process, water is forced through the semipermeable membrane under pressure, leaving behind impurities that are too large to pass through the membrane. The purified water then flows into the storage tank, while the impurities are flushed away as wastewater.
Reverse osmosis systems are commonly used for residential and commercial water treatment applications, such as drinking water, aquariums, and industrial processes. They can remove up to 99% of dissolved solids and other impurities, making them one of the most effective water purification technologies available.
The Partial Product Specification:
| Type |
Capacity (M3/H) |
Pipe DN (mm) |
WP (MPa) |
Material | Work Method |
| CY-RO-0.25 | 0.25 | DN20 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-0.5 | 0.5 | DN20 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-1 | 1 | DN25 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-2 | 2 | DN32 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-3 | 3 | DN40 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-5 | 5 | DN50 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-10 | 10 | DN75 | ≤1.0 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-20 | 20 | DN100 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-30 | 30 | DN125 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-40 | 40 | DN150 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
| CY-RO-50 | 50 | DN200 | ≤1.6 | Stainless Steel/Carbon Steel | Full Auto/Semi Automatic |
FAQ:
1.Question:How often should I replace the filters in a reverse osmosis system?
Answer:As a general guideline, it's recommended that the pre-filter and post-filter be replaced every 3-6 months.
2.Question:How to maintain the big capacity Reverse Osmosis System ?
Answer: 1.Regularly check the system for leaks 2.Monitor water pressure 3.Inspect and clean the pre-filters.
3.Question: How to install RO Plant?
Answer:Install the RO system equipment, including pre-filters, pumps, membranes, and post-filters, according to the manufacturer's instructions and any applicable regulations.
4.Question: Where is the CHONGYANG Water located ?
Answer: SHANGHAI ,JIANGSU
