GMP CGMP Medical Water Purification Systems Hospital Distilled Water Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | CHONGYANG |
| Certification: | ISO ,CE |
| Model Number: | CY-ROE-2000L/H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to export standard |
| Delivery Time: | With 30-40 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Month |
|
Detail Information |
|||
| Product Name: | Purified Water Production | Connection Type: | Clamp/Weld |
|---|---|---|---|
| Control Method: | PLC/HMI | Welding: | Orbital Welding, Track Welding |
| Raw Water Source: | Tap Water,Underground | Material: | 316L Stainless Steel |
| Sanitization: | CIP/SIP | Validation: | 21 CFR Part 11 |
| Highlight: | GMP Medical Water Purification Systems,cGMP Medical Water Purification Systems,hospital Distilled Water Making Machine |
||
Product Description
Product Name : FDA / GMP / cGMP Distilled water machine for pharmaceutical/hospital/medical

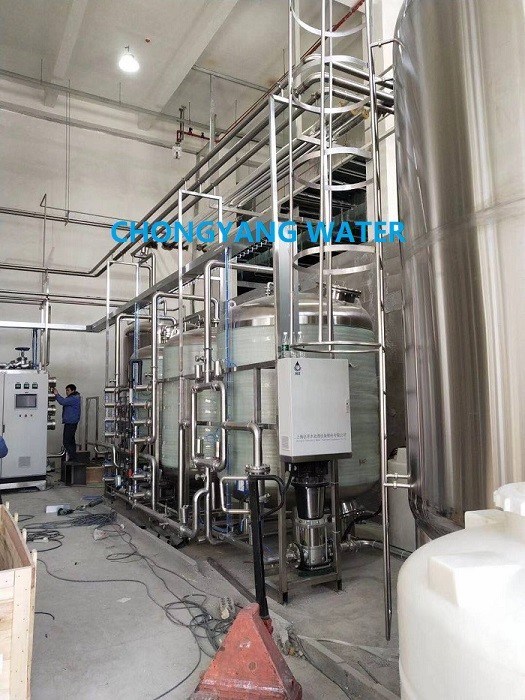

Distilled water plant Introduction
Purified water preparation system can affect pharmaceutical water directly,
it submits to GMP critical system.
RO and EDI equipment are designed for application in a wide range of purified water preparation of pharmaceutical plant and core equipment.
Reverse osmosis is also called opposite osmosis relative to “osmosis”.
Osmosis is a process of water from the dilute solution flows to concentrate through the semi permeable membrane automatically.
For the reverse osmosis, in the action of applied pressure, water from the concentrate flows to the dilute solution, it is un-optional.
EDI is also called continuous electro deionization, it brings electro dialysis and ion exchange technology together as one, By the action of electric field, ion directional movement then removes the salts. The working of EDI also a process of resin rebirth continuously, EDI device is after RO system.
| Product Name | Function |
| Raw water tank | Storage raw water ,regulating the water intake,and precipitation of the impurities in the water. |
| Sand filter | it can remove sediment,impurity ,suspended objects and the other particles in water to reduce turbidity of water. |
| Carbon filter | The used of carbon adsorption principle that to absorb the different colors,odors,residual chlorine and so on . |
| Softener | The used of special resin absorb Ca &Mg ions in water ,then replace them ,that to reduce water hardness. |
| Security filter | Prevent impurity of big particles into Reverse Osmosis Membrane ,resulting in damage to membrane ,that can protect RO Membrane. |
| Reverse Osmosis | By Principle of Reverse Osmosis to achieve purpose of producing pure water. |
| Double Stage Pure Water Tank | Storage RO Water ,that provide pure water source for the latter system |
| PH Regulation System | By PH regulation to reomove CO2 from water to ensure quality of production water . |
| UV Sterilizer | Killing residual bacteria in water to ensure water quality |
| Nanofiltration Membrane | Remove bacteria that killed by UV and the other particles . |
| Ozone Sterilization | Used for cleaning purified water pipe and purified water tank. |
| Booster Pump of Purified Water | Used for transporting pure water for water points . |
FAQ:
1.Question: How to maintain the water treatment equipment ?
Answer : Purified Water Equipment can be remotely controlled , In case there is fault of software .
2.Question:How to treat hardware problem during the guarantee period ?
Answer : Directly contact with us , CHONGYANG Water is responsible for changing parts with free. The customer bear freight cost .
3.Question : How to deal with small problem during working day ?
Answer : By wechat ,whatapp on-line in time.
